Sixty Seconds to Nothing: The Missing Daemons Behind Containerized UniFi Access

Preamble: Access on Top of a Protect Container

This did not start as a clean-room UniFi OS container project.

The starting point was much more practical: take the already working dciancu/unifi-protect-unvr-docker-arm64 image shape and add Access on top of it.

That upstream project had already solved the boring but painful parts:

1. extract UNVR firmware;
2. repack the required UniFi OS .deb packages;
3. install them into an ARM64 Debian image;
4. run systemd as PID 1 inside a privileged container;
5. fake enough UNVR hardware identity and storage state for UniFi OS to boot;
6. run Protect from the firmware bundle.

So the first Access attempt was intentionally small. Keep the Protect container shape, install the Access package and its obvious dependencies, add the launcher/nginx bits, and see how far it gets.

The annoying part was that it got very far.

The UniFi OS wizard completed. Access opened. After the network work from Vol 1, the Hub Mini and G3 reader adopted. Door unlock worked. Logs were ugly in places, but nothing looked fundamentally dead.

That made the project feel mostly finished.

Then we started adding capabilities.

Not just “can the local door open”, but:

• can the console sign in with a Ubiquiti account;
• can ownership state sync back from UI cloud;
• can Access and Identity agree on users;
• can the log noise be reduced instead of hidden;
• can the image carry Protect and Access in one UNVR-shaped userspace;
• can the repo become something reproducible instead of a one-off patched container.

That is where the first image stopped being enough.

The lesson of this post is not “how to start Access once”. The first image already did that. The lesson is what changed when the goal moved from an Access app running inside a Protect-style container to a fuller UniFi OS console shape.

It Booted. It Adopted Doors. Then It Tried to Phone Home.

Vol 1 was the network story.

Access adoption did not care that the controller was reachable over a normal routed tunnel. It cared that discovery looked local. The final shape was VXLAN-over-IPSec, a Linux bridge on the AWS side, and one Docker macvlan interface that made the controller appear as 10.255.255.200 on the office LAN.

That solved the physical part of the problem. The Hub Mini and G3 reader could discover the controller, adopt, receive config, and stay online.

The image looked solved too.

The controller booted. The UniFi OS wizard completed. Access opened. The door hardware adopted. Door unlocks worked.

Then I clicked Sign in with Ubiquiti Account.

The browser waited for one minute and returned:

408 Request Timeout

Not five seconds. Not “somewhere around a minute”.

Almost exactly sixty seconds.

The obvious logs did not say “wrong package”, “missing daemon”, or “cloud rejected this fake console”. The browser SSO flow itself finished. The failure happened after that, when UniFi Core tried to bind the signed-in UI account to the local console.

That became the second half of the project.

Vol 1 made the network look like the office LAN. Vol 2 is about making Docker look enough like a UniFi console that UniFi Core, Access, Identity, and UI cloud could agree on what the console was.

Ubiquiti does not support this deployment model. Their self-hosting docs allow UniFi OS Server for Network and some UniFi OS features, but state that other applications such as Protect and Access must run on a compatible UniFi Console. Their Access docs also say setup requires a UniFi Console that supports the Access application. This post is about an unsupported lab build, not a production recommendation.

The Pattern We Copied

The upstream Protect image was the parent pattern, not a random reference.

It already showed that a UNVR-shaped userspace could run in Docker if the image kept enough of UniFi OS intact. It downloaded UNVR firmware, extracted UniFi-maintained packages, carried unifi-core, ulp-go, uos*, unifi-directory, unifi-assets-unvr, Node packages, and installed Protect from the firmware bundle.

My first mental model was simple:

Protect-in-Docker
    -> add Access package
    -> add Access dependencies
    -> patch launcher / nginx
    -> keep the same UNVR identity
    -> done

That was a reasonable starting point because the local app path really did work.

It was also incomplete. Protect and Access share the same UniFi OS shell, but they do not exercise the same internal workflows. Protect could be useful with the smaller upstream daemon set. Access cloud ownership pushed deeper into the Identity and credential side of UniFi OS.

flowchart LR
    A[dciancu Protect image shape] --> B[UNVR firmware extraction]
    B --> C[Debian 11 arm64 + systemd]
    C --> D[UniFi Core + ULP]
    D --> E[Protect from firmware]
    E --> F[Storage / identity / nginx shims]
    F --> G[Access package added]
    G --> H[Local Access works]
    H --> I[Cloud bind exposes missing daemons]

The First Image Looked Better Than It Was

The first Access-on-Protect image was good enough to be deceptive.

It had the usual console shims:

None of that was wasted work. Those patches got the image far enough to pass setup, run Access, and operate a door.

But “the door opens” was only the first capability.

The next capability was cloud ownership. That required more than the Access app and more than the Protect-era shims. It required local UniFi OS daemons that could consume Identity and credential messages from UniFi Core.

The bug only appeared when the local console tried to become a cloud-managed console.

That is a nastier class of failure. Local services can look mostly fine while one internal request/reply chain is missing a subscriber.

The Symptom: Exactly Sixty Seconds

The user-visible failure was boring:

POST /api/cloud/register
408 Request Timeout

The useful part was the timing.

The nginx-side request time was basically one minute:

POST /api/cloud/register
status=408
request_time=60.001
upstream_response_time=-

The u_rt=- part matters. This was not a normal upstream HTTP service returning an error. From nginx's point of view, there was no useful upstream response.

That sent me down two wrong paths first.

The wrong paths are worth keeping in the story because they teach the difference between loud logs and blocking logs.

Dead End 1: The Storage gRPC Error Was Loud, Not Causal

The loudest error was this:

[grpc] Failed to connect to the gRPC server:
14 UNAVAILABLE: No connection established.
Last error: Error: connect ECONNREFUSED 127.0.0.1:11052

It repeated every few seconds.

That looked guilty. A local gRPC service was missing. A cloud-register API was timing out. Easy conclusion: fix storage and cloud sign-in will work.

But the timing did not match.

The 11052 error happened before the cloud-register attempt, during the cloud-register attempt, and after the cloud-register attempt. It was background noise from an incomplete console image, not the exact thing holding /api/cloud/register open for sixty seconds.

The repo still carries the inherited storage workaround because it is needed for setup paths:

grep -c 'return at(),!0' /usr/share/unifi-core/app/service.js
# 1

The sed patch forces one UniFi Core storage path into a shell-command fallback. The /usr/bin/ustorage shim then returns disk, space, and config JSON.

But that patch never meant “all storage/state calls are fixed”. Other state paths still tried to talk to a real console daemon on 127.0.0.1:11052.

The later UNVR rebuild did fix this noise by including ustate-exporter and ustd. That was good, but it was not the root cause of the 408.

Dead End 2: ulp-go Was Alive

The next suspect was ulp-go, the Users/Login Platform service.

The request looked like a UI account bind operation, so ulp-go seemed like the obvious place to look.

But ulp-go was not dead.

It was running. It had local connections to UniFi Core's IPC port. Its status showed it was configured. Its log had the normal startup lines:

init wsClient
Connected to server
Subscribe event success
controllerStatus: READY
isConfigured: true

During the exact sixty seconds where /api/cloud/register hung, ulp-go did not log a failed outbound request. It did not log a token rejection. It did not crash.

It was just quiet.

That broke my first model of the flow. I had assumed something like this:

unifi-core
    -> HTTP request
    -> ulp-go
    -> UI cloud

The actual shape was closer to this:

unifi-core handler
    -> publish internal message
    -> wait for local subscriber reply
    -> no subscriber replies
    -> timeout

A healthy ulp-go process did not prove that every ulp.* or cloud-binding topic had a consumer.

The Number That Explained the Timeout

The useful clue was a config value, not a stack trace.

Inside UniFi Core:

messageBox:
  maxSubscriptionBacklog: 1000
  subscriptionReaperInterval: 30000
  longPollTimeout: 60000
  keepAliveTimeout: 60000

The API call waited sixty seconds because the handler was waiting on a messageBox request/reply path.

The chain looked like this:

POST /api/cloud/register
    -> unifi-core handler
    -> publish("ulp.bindSsoAccount", payload)
    -> wait for response
    -> no local subscriber answers
    -> messageBox.longPollTimeout
    -> 408

That was the important inversion.

The browser-visible failure did not mean “UI cloud rejected the console”. It meant UniFi Core published an internal message and nobody in the local container answered it.

Reverse-engineering this out of service.js was ugly. In this UniFi Core build, service.js is a large minified blob. Every diagnostic involves grepping for strings around anonymous variables and then trying to reconstruct intent from call shape.

But the timeout made the architecture visible.

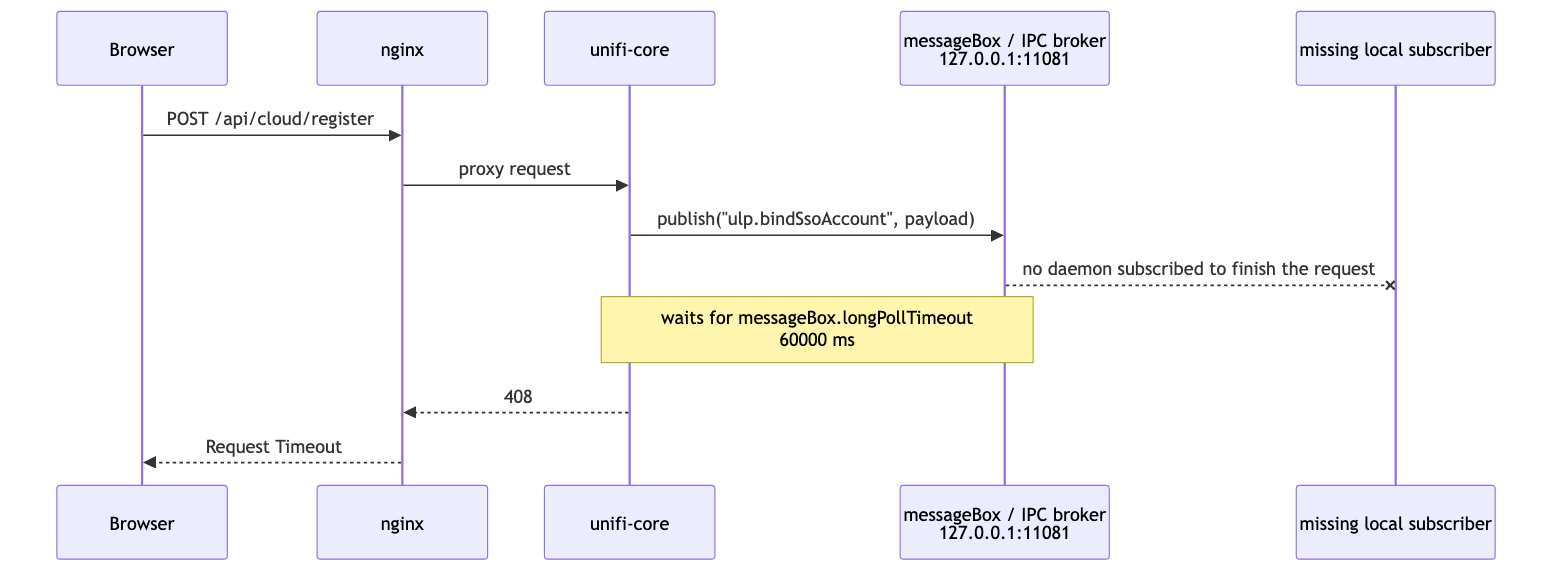

sequenceDiagram
    participant Browser
    participant Nginx as nginx
    participant Core as unifi-core
    participant MB as messageBox / IPC broker<br/>127.0.0.1:11081
    participant Missing as missing local subscriber

    Browser->>Nginx: POST /api/cloud/register
    Nginx->>Core: proxy request
    Core->>MB: publish("ulp.bindSsoAccount", payload)
    MB--xMissing: no daemon subscribed to finish the request
    Note over Core,MB: waits for messageBox.longPollTimeout<br/>60000 ms
    Core-->>Nginx: 408
    Nginx-->>Browser: Request Timeout

The missing piece was not another nginx route. It was not a firewall rule. It was not the public cloud endpoint.

It was the local UniFi OS daemon graph.

The Package Set Was the Real Bug

The firmware family was not the problem anymore. We were already using the right family: UNVR.

The problem was that the first Access image treated the upstream Protect package selection as enough of UniFi OS.

For Protect, that selection is practical: core OS packages, ulp-go, directory, assets, UOS helpers, Node packages, and the Protect application from the firmware bundle. That is enough to make Protect useful inside the UNVR-shaped container.

Access raised the bar.

The 408 showed that local Access was not the same as a complete console identity flow. UniFi Core published an internal message for SSO binding, then waited for a local daemon to answer. The app was present. The web UI was present. The door device path was present. The local subscriber for the cloud-ownership path was not.

So the rebuild did not mean “switch away from the Protect pattern”. It meant extend the Protect pattern in the direction it was already pointing:

UNVR firmware is still the source
UNVR identity is still the runtime lie
Protect still comes from the firmware bundle
Access is installed on top
but the extracted daemon set must be larger

That changed the target from:

make Access start

to:

make UniFi OS complete enough for Access, Identity, and cloud ownership

Those are not the same thing.

The Daemons That Made It a Console

The rebuild stayed with UNVR firmware, but pulled in the missing UniFi OS support packages instead of only the smaller Protect-era selection.

The critical additions were not application packages. They were the daemons around the application.

The current repo extracts the selected UNVR packages explicitly instead of copying every .deb blindly:

cp ubnt-archive-keyring_* ubnt-tools_* ubnt-ucp4cpp_* ubnt-rpsd_* \
   ubnt-common_* ubnt-binmecpp_* ubnt-disk-smart-mon_* \
   unifi-core_* ulp-go_* unifi-assets-unvr_* unifi-directory_* unifi-hal_* \
   unifi-email-templates-all_* unifi-identity-update_* \
   uos_* uos-agent_* uos-discovery-client_* \
   ucs-agent_* uid-agent_* ucore-setup-listener_* uled-control_* \
   ustate-exporter_* ustd_* ubnd_* \
   c2lib_* libcurlpp_* libsodiumpp_* libubnt_* libuled_* simple-pid_* \
   analytic-report-go_* ble-http-transport_* \
   python3-unifi-console-protos_* \
   node* ../debs/

This manifest is intentionally explicit. If Ubiquiti renames or removes a package, I want the build to fail loudly.

There is one practical footnote: the line between “hardware-only” and “required dependency” is not always clean. Some packages look like they should be skipped in a container but still satisfy service dependencies. That is why the validation suite matters more than trying to reason about every package name in isolation.

Why the Protect Pattern Worked Anyway

This is not a criticism of the Protect container pattern.

The parent project solved a different problem. It built a UNVR-shaped userspace for Protect, and Protect's normal paths were satisfied enough for that application.

Access made the gap visible because its cloud sign-in path exercised more of the Identity and credential side of UniFi OS.

So the lesson is not:

Protect-in-Docker is incomplete.

The lesson is:

Access uses more of the console identity stack than the first copied image included.

The first build could adopt doors because the local Access service worked. It could not finish cloud ownership because the local message-bus consumer chain was incomplete.

The Rebuild: Protect Plus Access, With the Missing Daemons

The fix was not to abandon the upstream image shape.

The fix was to make the image more honest about what it wanted to be: a UNVR-shaped UniFi OS userspace with both Protect and Access, plus the support daemons that Access needs for Identity and cloud ownership.

The repo now builds in two stages:

1. build-firmware.sh downloads or uses a selected UNVR firmware image, extracts the firmware, and writes generated artifacts under firmware/<series>/.
2. build-os.sh installs the extracted packages, plus Protect and Access, into a Debian 11 ARM64 systemd image.

There is also a single-file multi-stage Dockerfile for users who want docker build ., but the split scripts are easier to debug.

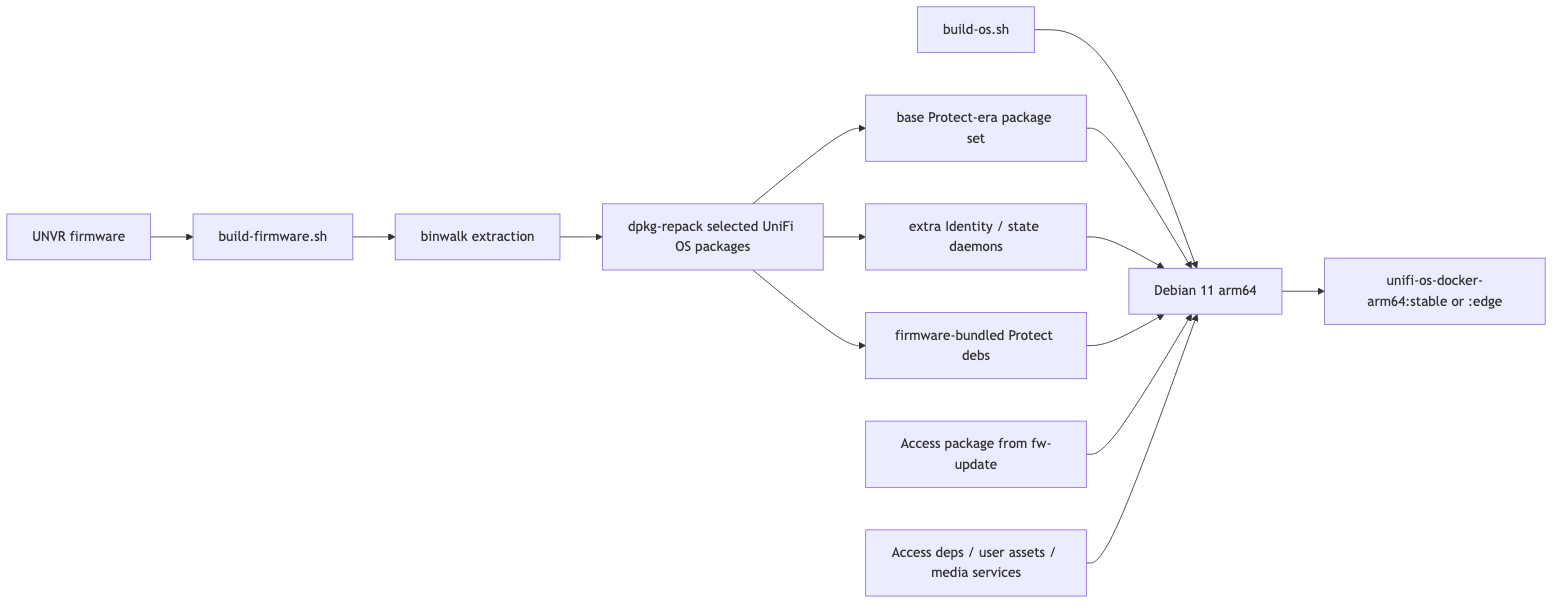

flowchart LR
    A[UNVR firmware] --> B[build-firmware.sh]
    B --> C[binwalk extraction]
    C --> D[dpkg-repack selected UniFi OS packages]
    D --> E[base Protect-era package set]
    D --> F[extra Identity / state daemons]
    D --> G[firmware-bundled Protect debs]

    H[build-os.sh] --> I[Debian 11 arm64]
    E --> I
    F --> I
    G --> I
    J[Access package from fw-update] --> I
    K[Access deps / user assets / media services] --> I
    I --> L[unifi-os-docker-arm64:stable or :edge]

The stable build uses pinned Access and AI-feature package URLs where needed, and installs Protect from the firmware bundle. The edge build resolves newer app packages from Ubiquiti's firmware update endpoints. That gives two useful modes:

Access is downloaded on top because UNVR firmware does not bundle it in the same way it bundles Protect. Protect comes from the UNVR firmware extraction, so the repo installs both apps into one image.

That gives the image a clearer identity:

UNVR-shaped UniFi OS userspace
    + Protect from UNVR firmware
    + Access from fw-update package
    + extra Identity and state daemons Access needs

The important design choice is that the repo keeps the upstream Protect inheritance visible. This is not “my own UniFi OS from scratch”. It is the Protect container pattern expanded until Access cloud ownership stopped timing out.

The Swap That Proved the Theory

I did not replace the old container blindly.

The old image stayed around as rollback:

docker rename unifi-access unifi-access-v0.2.0

The persistent state stayed mounted:

/srv/unifi-access/srv
/srv/unifi-access/data
/srv/unifi-access/persistent

The new image started with the same state and the same office-facing network identity from Vol 1.

The first surprise was that cloud activation was already true after restart:

docker exec unifi-os systemctl show ulp-go -p StatusText | \
  grep -oE 'standardActivated":[a-z]+|ucsAgentVersion":"[^"]+"'

Expected shape:

standardActivated":true
ucsAgentVersion":"1.6.98+733"

I had not clicked the cloud sign-in button again.

That changed the interpretation of the earlier 408.

The browser-visible /api/cloud/register request had timed out locally, but the server-side cloud claim had apparently completed. The missing part was local state convergence. The old image had no daemon to consume the internal message and flip the local state. The new one did.

The evidence table looked much better:

Example checks:

docker exec unifi-os ss -tnp state established | grep ':443'

docker exec unifi-os ss -ltnp | grep 11052

docker exec unifi-os tail -n 20 /data/unifi-core/logs/grpc.log

The log line that mattered:

call cloud api https://cell3.api.identity.ui.com/standard/api/v1/public/console/ownership/check [POST] success

That was the answer to the title.

The sixty-second timeout was not “UI cloud hates Docker”. It was “UniFi Core is waiting for a local console daemon that is missing”.

The Last Mile: Registered Is Not Connected

The daemon rebuild fixed the sixty-second bind timeout, but it exposed one more trap.

Cloud registration and cloud connection are different states.

After the Ubiquiti account flow completed, UniFi Core had clearly registered the console:

2026-05-26T16:38:03+03: registering device for cloud access
2026-05-26T16:38:04+03: registered device for cloud access: deviceId=<device-id>, ownerId=<owner-id>

But the console still did not appear in the cloud list, and cloud-backed operations failed locally:

Can't publish to "api/v1/create-auth-token/...", cloud connection not established
Can't publish to "api/v1/create-invitation/<device-id>", cloud connection not established

That made the state machine clearer:

The broken value was hiding in UniFi Core's settings:

anonymous_device_id: "Ubiquiti system tools\nCopyright 2006-2024, Ubiquiti, Inc. <[email protected]>\n...\thwaddr"

That value should have been a stable UUID. Instead, a failed identity-helper path had persisted ubnt-tools banner/help text as the anonymous console ID. /data/uuid.txt already had a valid UUID; UniFi Core was just not using it.

The durable fix had two parts:

1. ubnt-tools id <file> now writes the same generated board identity to the requested file that ubnt-tools id prints to stdout.
2. init_console.sh now repairs missing, null, or non-UUID anonymous_device_id values back to the stable /data/uuid.txt value.

After repairing the live settings file and restarting uos-agent plus unifi-core, the cloud log changed shape:

2026-05-27T00:09:10+03: Device connected to cloud
subscribe device/<device-id>
subscribe $aws/things/<device-id>/shadow/name/+/update/delta
subscribe device/<device-id>/client/#
subscribe d/<device-id>/c/#
subscribe device/<device-id>/ping
subscribe device/<device-id>/application/+
subscribe d/proxy/<device-id>/#
Successful sync owner to cloud

At that point unifi-core also had an established MQTT/TLS connection to :8883, and the log stopped producing fresh cloud connection not established errors.

That is the distinction I wish I had checked earlier: a successful account bind proves ownership, not necessarily a usable cloud transport.

Local Repo Defaults vs the Cloud Topology

The public repo defaults to host networking:

network_mode: host

That is the right default for most Linux users. If the container runs on a local ARM64 host on the same LAN as the Access devices, host networking is the simplest way to make discovery and adoption work.

The cloud deployment from Vol 1 is different. There the container does not live on the office LAN, so host networking on the EC2 instance would only expose AWS interfaces. The cloud version still needs the macvlan/VXLAN shape:

Office LAN
    -> VXLAN-over-IPSec
    -> br-office on EC2
    -> Docker macvlan parent=br-office
    -> unifi-os container IP 10.255.255.200

The repo README documents both ideas:

The warning from Vol 1 still applies: do not attach both the default Docker bridge and the office macvlan. UniFi OS can see the bridge address, select it as controller identity, and generate device or invitation URLs pointing at an unreachable 172.x.x.x address.

One identity is boring. Boring is good.

The Network Repair Timer Stayed

The rebuilt image still carries the Access network repair timer.

This is a Vol 1 lesson that became repo code.

The timer runs once shortly after boot and then every minute:

[Timer]
OnBootSec=20s
OnUnitActiveSec=1min
AccuracySec=10s
Persistent=true

The service calls:

/usr/sbin/configure_unifi_access_network.sh

The script resolves the Access management interface in this order:

1. explicit ACCESS_MNGT_NETWORK_ID;
2. interface holding ACCESS_MNGT_NETWORK_IP;
3. default-route interface.

Then it lowers the interface MTU if it is larger than ACCESS_DEVICE_MTU, defaulting to 1200:

device_mtu="${ACCESS_DEVICE_MTU:-1200}"

Finally, if the Access API is up, it checks /api/v2/networks and /api/v2/settings, then updates mngt_network_id when needed.

That timer exists because discovery success was not enough. Small UDP discovery packets worked even when larger post-adoption TLS/MQTT flows did not. Docker could recreate the macvlan interface with an unsafe MTU, and Access could drift back to the wrong management network selection.

So the image keeps repairing the two things that made the reader stable:

correct device-facing interface
safe device-facing MTU

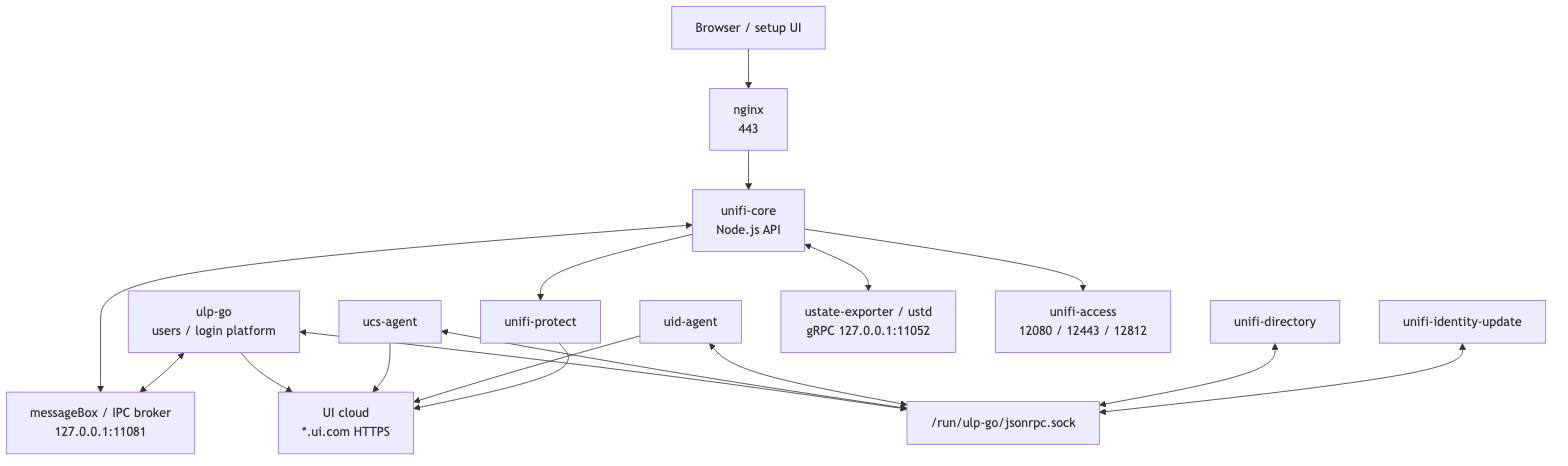

The IPC Map I Wish I Had First

This is the model that made the failure understandable.

It is not a full UniFi OS spec. It is the map that was useful for debugging this container.

flowchart TB
    Browser[Browser / setup UI]
    Nginx[nginx<br/>443]
    Core[unifi-core<br/>Node.js API]
    MB[messageBox / IPC broker<br/>127.0.0.1:11081]
    ULP[ulp-go<br/>users / login platform]
    Sock["/run/ulp-go/jsonrpc.sock"]
    UCS[ucs-agent]
    UID[uid-agent]
    Dir[unifi-directory]
    Update[unifi-identity-update]
    State[ustate-exporter / ustd<br/>gRPC 127.0.0.1:11052]
    Access[unifi-access<br/>12080 / 12443 / 12812]
    Protect[unifi-protect]
    Cloud[UI cloud<br/>*.ui.com HTTPS]

    Browser --> Nginx
    Nginx --> Core

    Core <--> MB
    ULP <--> MB

    ULP <--> Sock
    UCS <--> Sock
    UID <--> Sock
    Dir <--> Sock
    Update <--> Sock

    Core <--> State

    Core --> Access
    Core --> Protect

    ULP --> Cloud
    UCS --> Cloud
    UID --> Cloud
    Protect --> Cloud

The split that matters:

The trap was assuming that one healthy service meant the whole chain was healthy.

ulp-go was alive. It just was not enough.

Current Patch Catalog

The UNVR rebuild reduced the number of things that had to be faked, but it did not remove all patches.

This is still Docker pretending to be a console.

Some of these patches are ugly.

That is fine.

The dangerous thing is not an ugly patch. The dangerous thing is a silent patch that keeps applying after upstream code moved.

Every sed should fail loudly when its anchor disappears:

if ! sed -i 's|old-pattern|new-pattern|' /path/to/file; then
    echo "ERROR: expected patch pattern not found"
    exit 1
fi

The repo follows this pattern for the storage and nginx setup patches. That should stay non-negotiable.

Validation Suite

A clean boot is not proof.

For this image, validation has to prove the app, the console service graph, cloud ownership, and device traffic.

1. Package inventory

docker run --rm unifi-os-docker-arm64:stable dpkg -l | \
  grep -iE 'unifi|ulp|ucs|uid|uos|ubnt|ucore|ustd|ustate'

Expected shape:

unifi-core
ulp-go
ucs-agent
uid-agent
unifi-identity-update
ucore-setup-listener
ustate-exporter
ustd
unifi-access
unifi-protect
unifi-assets-unvr

Do not pin every version in the article. Pin versions in the repo or release notes.

2. Systemd health

docker exec unifi-os systemctl list-units \
  --type=service \
  --state=running \
  --no-pager | grep -iE 'ulp|ucs|uid|unifi|uos|ustate|ustd|ucore'

Expected: the identity and app daemons are running.

Not every hardware daemon matters in Docker. Treat hardware-only failures separately from identity/app failures.

3. Cloud activation state

docker exec unifi-os systemctl show ulp-go -p StatusText | \
  grep -oE 'standardActivated":[a-z]+|ucsAgentVersion":"[^"]+"'

Expected:

standardActivated":true
ucsAgentVersion":"..."

If standardActivated stays false after a successful UI-account sign-in, the identity chain is still broken.

4. Cloud connectivity

docker exec unifi-os grep '^anonymous_device_id:' \
  /data/unifi-core/config/settings.yaml

docker exec unifi-os ss -tnp state established | grep -E ':(443|8883)'

docker exec unifi-os grep -E \
  'Device connected to cloud|Successful sync owner|cloud connection not established' \
  /data/unifi-core/logs/cloud.log | tail -n 40

Expected: anonymous_device_id is a UUID, identity-related processes have outbound TLS sessions to UI cloud endpoints, unifi-core has cloud MQTT/TLS on :8883, and there are no fresh cloud connection not established errors after connection.

This proves connectivity, not supportability.

5. Storage/state gRPC path

docker exec unifi-os ss -ltnp | grep 11052

docker exec unifi-os tail -n 20 /data/unifi-core/logs/grpc.log

Expected: ustate-exporter or the relevant state daemon is listening, and the endless ECONNREFUSED 127.0.0.1:11052 loop is gone.

6. Access API and device ports

Ubiquiti documents these Access ports:

Check device sessions:

docker exec unifi-os ss -tnp state established | grep -E ':(12443|12812)'

Check local API:

docker exec unifi-os curl -sS http://127.0.0.1:12080/api/v2/settings | jq .

7. Network identity

For local host-network deployments, the expected address is the host LAN address.

For the Vol 1 cloud/macvlan deployment, the expected address is the office-LAN macvlan address:

docker exec unifi-os ip -brief addr

docker exec unifi-os curl -sS http://127.0.0.1:12080/api/v2/info | \
  jq -c '{host:.data.host.ip, wan:.data.host.wan_ip}'

Expected cloud/macvlan shape:

{"host":"10.255.255.200","wan":"10.255.255.200"}

There should be no Docker bridge 172.x.x.x address for UniFi OS to advertise.

8. MTU repair

docker exec unifi-os sh -c '
iface=$(ip -o -4 addr show | awk "$4 ~ /^10\\.255\\.255\\.200\\// {print \$2; exit}")
cat /sys/class/net/$iface/mtu
'

Expected cloud/VXLAN shape:

1200

Small discovery packets are not enough. The acceptance test is discovery, adoption, config push, firmware push, and long-lived MQTT.

What This Design Commits You To

This is not a small “Access container”.

It is closer to this:

UNVR-shaped UniFi OS userspace inside Docker

That has consequences.

You now depend on a pinned UNVR firmware family. Every UniFi OS bump means extracting packages again, rebuilding, and checking whether package names or minified JavaScript anchors moved.

You inherit services you may not care about. Some are required by Identity or Access. Some exist because firmware packages depend on them. Some expect hardware that a container will never have.

You must disable UniFi OS and app auto-updates after setup. A normal console update can replace patched files, move dependencies, or make the sed anchors invalid.

You must keep backups of all persistent paths:

/srv
/data
/persistent

Or in the repo's default local compose layout:

./storage/srv
./storage/data
./storage/persistent

You must treat downgrades as unsafe. Access, Protect, PostgreSQL clusters, device firmware, and UniFi Core state do not all roll back cleanly.

The practical split:

The final lesson is simple:

A UniFi application is not the same thing as a UniFi console.

Vol 1 made the controller look local to the door hardware.

Vol 2 made the container look complete enough that UniFi Core, Identity, Access, and UI cloud could agree on the same console.

References

• Vol 1: Doors Don't Route
• Source repo: kuzaxak/unifi-access-unvr-docker-arm64
• Parent repo: dciancu/unifi-protect-unvr-docker-arm64
• Ubiquiti: Self-Hosting UniFi
• Ubiquiti: UniFi Consoles with UniFi Access Support
• Ubiquiti: Getting Started with UniFi Access
• ConnorsApps/unifi-os-helm SERVICES.md
